DIN 1.4541 Tubes
ASME SA249 SS DIN 1.4541 Cold Rolled Coiled Tubes Exporter, DIN 1.4541 SS Decorative Tubes, ASTM A213 SS DIN 1.4541 ERW Tubes, SS DIN 1.4541 EFW Tubing Manufacturer, SS DIN 1.4541 Seamless Tubing, Stainless Steel DIN 1.4541 Cold Drawn Tubes, DIN 1.4541 Heat Exchanger Tubes Supplier

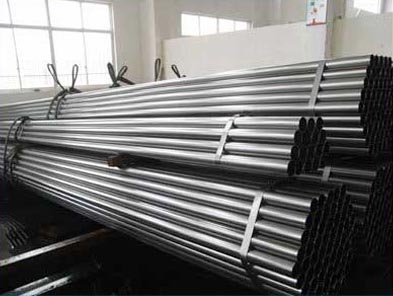

DIN 1.4541 Tubes are known for their range of uses for commercial purposes in many big industries. These tubes are available in custom-made shapes and forms. There are round ones and square ones, rectangular ones, oval, hollow and several others. They are also available in hot and cold rolled form, threaded form. Other forms are annealed, pickled, heat exchangers and so on.
The stainless steel tubes come in different types and these types are designed to meet the buyer’s specific requirements. 316L SS Tubes are essential when better weldability is required. These are capable of decreasing the view of an inferior corrosion resistance welded area. They can withstand high temperatures and pressure. UNS S31603 Tubes is mostly required in chemical and petrochemical industries, oil and gas industries, power generation industries, fertilizer industries, and food processing industries, and so on.
SUS 316L Tubes are primarily chromium-nickel-based austenitic stainless steel. These are corrosion resistant owing to their composition, and they can withstand corrosive environments at normal temperatures in ordinary atmospheric temperatures. There are Stainless Steel Tubes have the greatest strength and endurance capability makes them suitable for pitting and crevice corrosion in chloride environments.
We, at Leoscor Alloys, offer you steel at highly affordable prices. Our aim is to ensure that you receive the best from us. We provide quality assurance for all our products. Contact us for your requirement.
SS DIN 1.4541 Tubes Stockholder, SS DIN 1.4541 High-Pressure Tube, ASTM A249 SS DIN 1.4541 Round Tubes, DIN 1.4541 Square Tube, ASME SA213 SS DIN 1.4541 Rectangular Tubes, SS DIN 1.4541 Oval Tubes, DIN 1.4541 Electropolished Tubes Provider in India
DIN 1.4541 Tubes - Quick Section Links
SS DIN 1.4541 Tubes Specifications
Standard specifications for stainless steel SS DIN 1.4541 Tubes. If any specification is not mentioned here, you can contact us. We also manufacture and export any custom specification as per clients requirement.
Specifications | ASTM A/ASME SA213/A249/A269 |
Dimensions | ASTM, ASME and API |
DIN 1.4541 Tubes | 1/8″NB TO 30″NB IN |
Thickness | 0.35mm to 6.35mm OD in thickness ranging from 0.1mm to 1.2mm. |
Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
Type | Seamless / ERW / Welded / Fabricated / LSAW Tubes |
Form | Round, Square, Rectangular, Hydraulic Etc |
Length | Single Random, Double Random & Cut Length. |
End | Plain End, Beveled End, Treaded |
Types of SS DIN 1.4541 Tubes
Stainless Steel DIN 1.4541 Welded Tubes | DIN 1.4541 SS Welded Tubes |
DIN 1.4541 SS Seamless Tubes | Stainless Steel DIN 1.4541 Seamless Tubes |
Stainless Steel DIN 1.4541 ERW Tubes | DIN 1.4541 SS ERW Tubes |
DIN 1.4541 SS Fabricated Tubes | Stainless Steel DIN 1.4541 Fabricated Tubes |
Stainless Steel DIN 1.4541 LSAW Tubes | DIN 1.4541 SS LSAW Tubes |
DIN 1.4541 Stainless Steel Polished Tubes | SS DIN 1.4541 Polished Tubes |
Stainless Steel DIN 1.4541 Cold Drawn Tubes | DIN 1.4541 SS Cold Drawn Tubes |
DIN 1.4541 SS Hot Rolled Tubes | Stainless Steel DIN 1.4541 Hot Rolled Tubes |
Stainless Steel DIN 1.4541 Cold Rolled Tubes | DIN 1.4541 SS Cold Rolled Tubes |
DIN 1.4541 SS Square Tubes | Stainless Steel DIN 1.4541 Round Tubes |
Stainless Steel DIN 1.4541 Hexagonal Tubes | DIN 1.4541 Stainless Steel Tubes |
DIN 1.4541 Seamless Tubes Chemical Composition
Grade | DIN 1.4541 | |
---|---|---|
min | max | |
C | – | 0.08 |
Mn | – | 2.0 |
Si | – | 1.0 |
P | – | 0.045 |
S | – | 0.030 |
Cr | 17.0 | 19.0 |
Ti | 5(C+N) | 0.70 |
Ni | 9.0 | 12.0 |
N | – | 0.10 |
ASTM A213 DIN 1.4541 SS Welded Tubes Mechanical Properties
Grade | DIN 1.4541 | |
---|---|---|
Tensile Strength (MPa) min | 515 | |
Yield Strength 0.2% Proof (MPa) min | 205 | |
Elongation (% in 50mm) min | 35 | |
Hardness | Rockwell B (HR B) max | – |
Brinell (HB) max | – |
SS DIN 1.4541 Tubes Physical Properties
Grade | DIN 1.4541 | |
---|---|---|
Density (kg/m3) | 8000 | |
Elastic Modulus (GPa) | 193 | |
Mean Coefficient of Thermal Expansion (m/m/0C) | 0-1000C | 16.6 |
0-3150C | 17.2 | |
0-5380C | 18.6 | |
Thermal Conductivity (W/m.K) | at 1000C | 16.1 |
at 5000C | 22.2 | |
Specific Heat 0-1000C (J/kg.K) | 500 | |
Electrical Resistivity (n.m) | 720 |
Stainless Steel DIN 1.4541 Tubes Equivalent Grades
Grade | 321 | |
UNS No | S32100 | |
Old British | BS | – |
En | X6CrNiTi18-10 | |
Euronorm | No | 1.4541 |
Name | – | |
Swedish SS | – | |
Japanese JIS | SUS 321 | |
GOST | – |
DIN 1.4541 Tubes Price List
Leoscor Alloys is one of the most competitive suppliers of pipes and tubes from India. Our prices for SS DIN 1.4541 Tubes are very competitive.
Please click on the request a quote button or click here to request the updated price list and ready stock information along with your requirement. Leoscor Alloys maintains a stock of all standard items and can export them at best price for DIN 1.4541 Stainless Steel Seamless and Welded Tubes.
SS DIN 1.4541 Seamless Tubes - Industries & Applications
Our pipes and tubes are used in a wide range of applications and various industries. Below are a few of them:
- Gas Processing Industries
- Petrochemical Industries
- Power Generation Industries
- Food Processing Industries
- Chemical Industries
- Oil & Gas Industries
- Fertilizers Industries
- Sugar Industries
ASTM A213 Stainless Steel DIN 1.4541 Tube Stock Availability
We maintain huge inventories of all standard sizes and grades. Please send us your complete requirement and we will send you the availability with the best quote for DIN 1.4541 Tubes.
Why Buy DIN 1.4541 SS Tubes from Leoscor Alloys
Leoscor Alloys is a leading stockist, distributor, and supplier of 1.4541 DIN SS Tubes from India. With more than three decades of experience, we understand the steel industry deeply. We have huge experience of supplying to all major industries across the world. Our team of dedicated experts with stringent quality policy ensures that we supply best-in-class products meeting and exceeding our client’s expectations. Below are a few quick points about why buying from Leoscor Alloys will give you an undue advantage:
- Huge inventory of all standard sizes and grades.
- Distributors of all reputed origins and manufacturers.
- Strict quality control policies and highly experienced team.
- Strong logistics & delivery channels.
- Modern Infrastructure with huge storage capacity.
- An ISO 9000:2015 Certified Company.
Prominent Countries where we export DIN 1.4541 SS Tubes
Exporting Pipes & Tubes to Singapore, Malaysia, Hongkong, Thailand, Indonesia, Taiwan. Other countires includes Afghanistan, Albania, Andorra, Austria, Bahrain, Bangladesh, Bhutan, Brunei, Belarus, Belgium, Bulgaria, Cambodia, China, Cyprus, Croatia, Czech Republic, Denmark, Estonia, Egypt, Finland, France, Germany, Greece, Georgia, Hungary, Iceland, Ireland, Italy, Iran, Iraq, Israel, Japan, Jordan, Kazakhstan, Kuwait, Kyrgyzstan, Lebanon, Latvia, Latin America, Liechtenstein, Lithuania, Luxembourg, Malta, Moldova, Monaco, Maldives, Mongolia, Myanmar (Burma), Nepal, North Korea, Netherlands, Norway, Oman, Poland, Portugal, Pakistan, Palestine, Philippines, Qatar, Russia, Romania, Russia, San Marino, Serbia and Montenegro, Slovakia, Slovenia, Spain, Sweden, Switzerland, Saudi Arabia, South Korea, South Africa, Sri Lanka, Syria, Tanzania, Tajikistan, Thailand, Turkey, Turkmenistan, Ukraine, United Kingdom, United Arab Emirates (UAE), Uzbekistan, Vietnam, Yemen.
We are one of the top:
- Tubes exporters to Singapore
- Tubes exporters to Malaysia
- Tubes exporters to Hongkong
- Tubes exporters to Thailand
- Tubes exporters to Indonesia
- Tubes exporters to Taiwan
